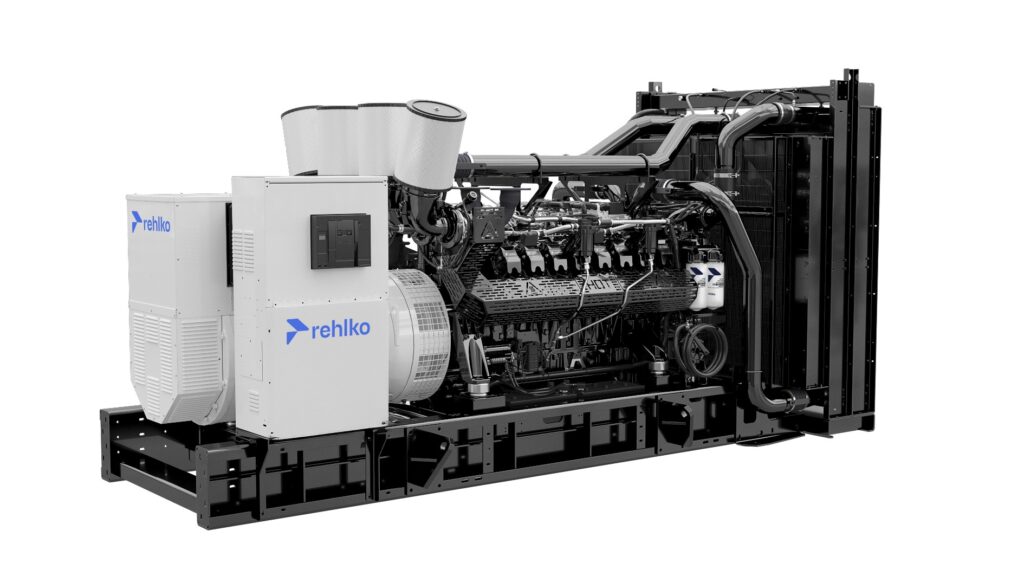

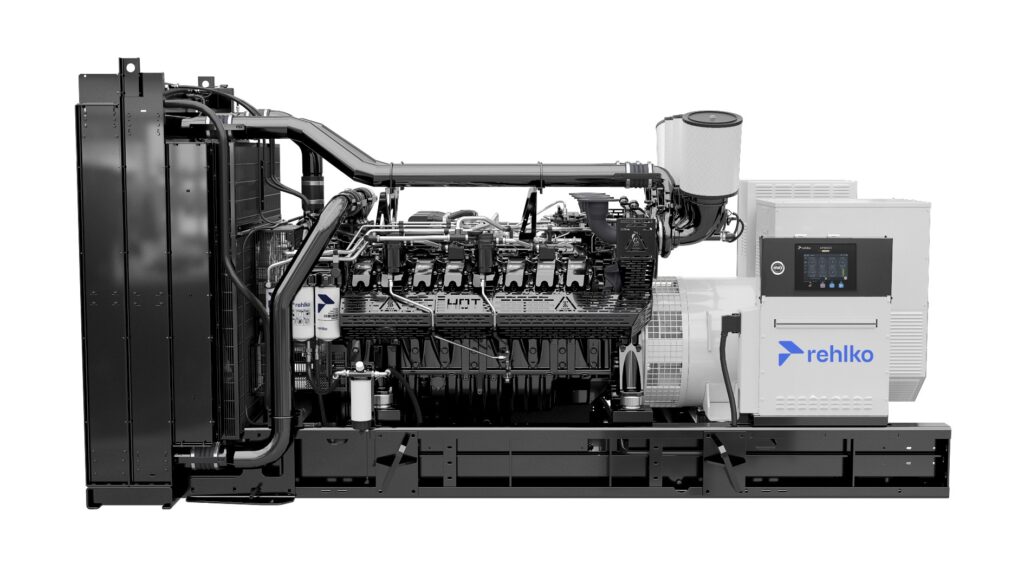

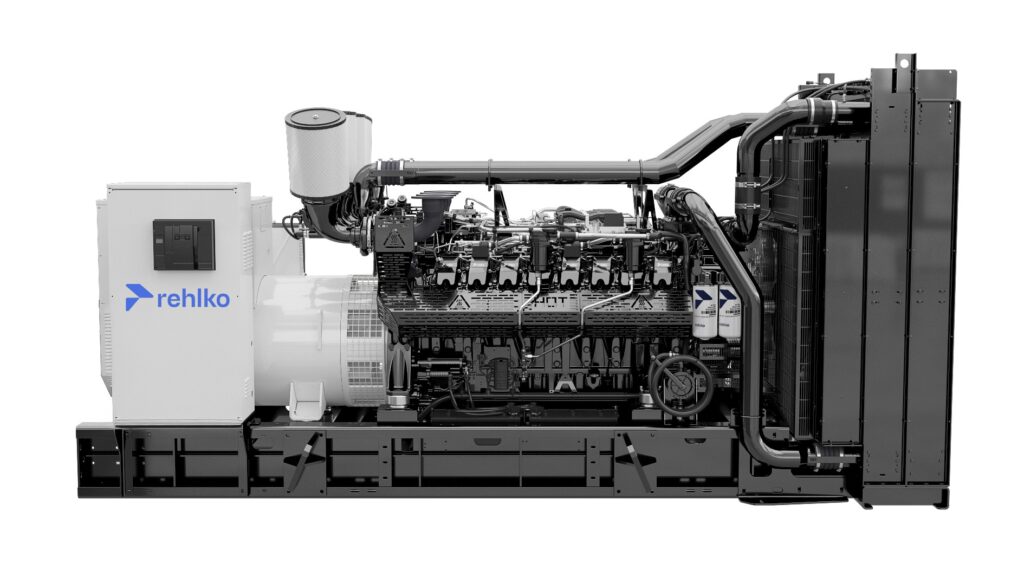

Diesel generator
KD1350
kW Ratings — Prime Range: 1150-1210 / Standby Range: 1350
Tier 2 EPA-Certified for Stationary Emergency Applications
- Specifications
- Features & Accessories
- Downloads
Specifications
- Engine ManufactureRehlko
- kW Rating, Standby1350
- Hz60
- Speed1800
- ModelKD36V16
- kW Rating, Prime1150-1210
- Fuel TypeDiesel
- Alternator Type4-Pole, Rotating-Field with Brushless, Permanent- Magnet Pilot Exciter
Features
- Rehlko provides one-source responsibility for the generating system and accessories.
- The generator set and its components are prototype-tested, factory-built, and production-tested.
- The 60 Hz generator set offers a UL 2200 listing.
- The generator set accepts rated load in one step.
- The 60 Hz generator set meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards.
- A standard three-year or 1000-hour limited warranty for standby applications.
Accessories
- Sound Level 1 Enclosure/Fuel Tank Package
- Exhaust Silences for open applications
- Block Heater (Required for Ambient Temperatures Below 10°C (50°F)
- Five-year basic, five-year comprehensive, and ten-year extended limited warranties
- Line Circuit Breaker
This information is provided for reference only and should not be used for planning. Contact us for more detailed information.
