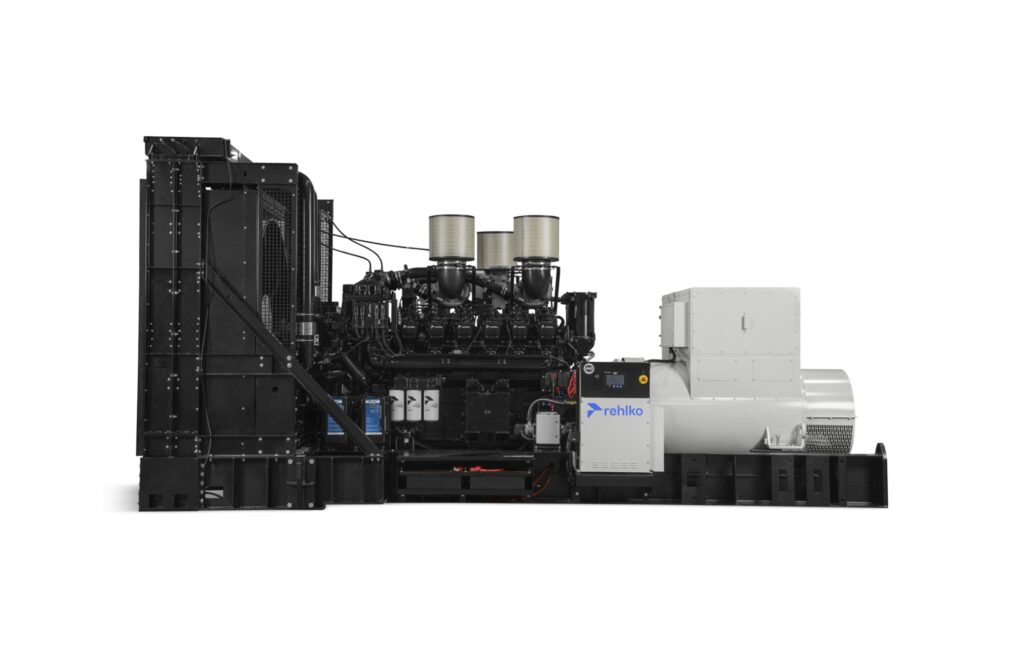

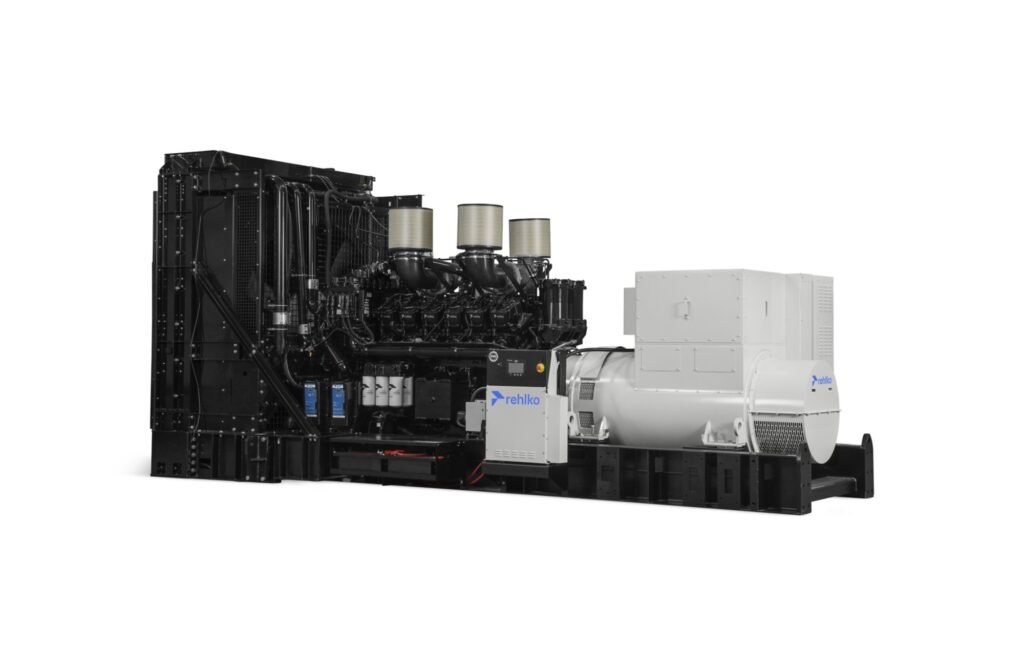

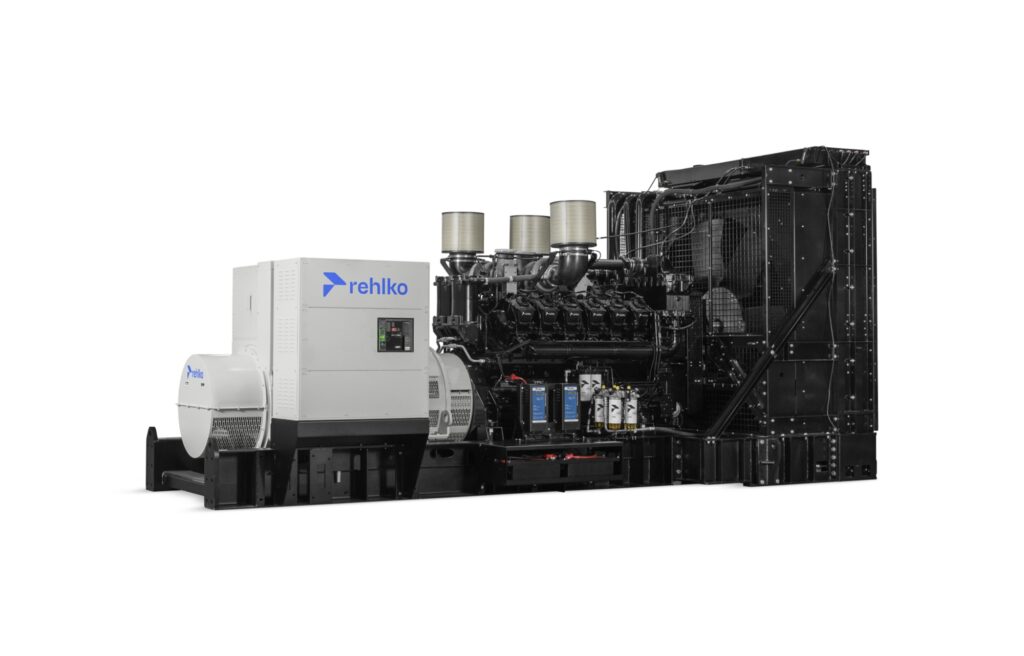

Diesel generator
KD2500
kW Ratings — Prime Range: 2050-2270 / Standby Range: 2250-2500
Tier 2 EPA-Certified for Stationary Emergency Applications
Get a Quote- Specifications
- Features & Accessories
- Downloads
Specifications
- Engine ManufactureKohler
- kW Rating, Standby2250-2500
- Hz60
- Speed1800
- ModelKD2500
- kW Rating, Prime2050-2270
- Fuel TypeDiesel
- Alternator TypeBrushless
Standard Features
- KOHLER Co. provides one-source responsibility for the generating systems and accessories.
- The KOHLER Diesel Powered generator set and its components are prototype-tested, factory-built, and production-tested.
- The 60 Hz generator set offers a UL 2200 listing and meets NFPA 110, Level 1, when equipped with the necessary accessories and installed per NFPA standards.
- A three-year limited warranty covers all systems and components. Five- and ten-year extended warranties are also available.
- An electronic, isochronous governor delivers precise frequency regulation.
- Sustained short-circuit current of up to 300% of the rated current for up to 10 seconds and enables down stream circuit breakers to trip without collapsing the alternator field.
- The generator set accepts rated load in one step.
Accessories
- Line Circuit Breakers
- Block Heaters

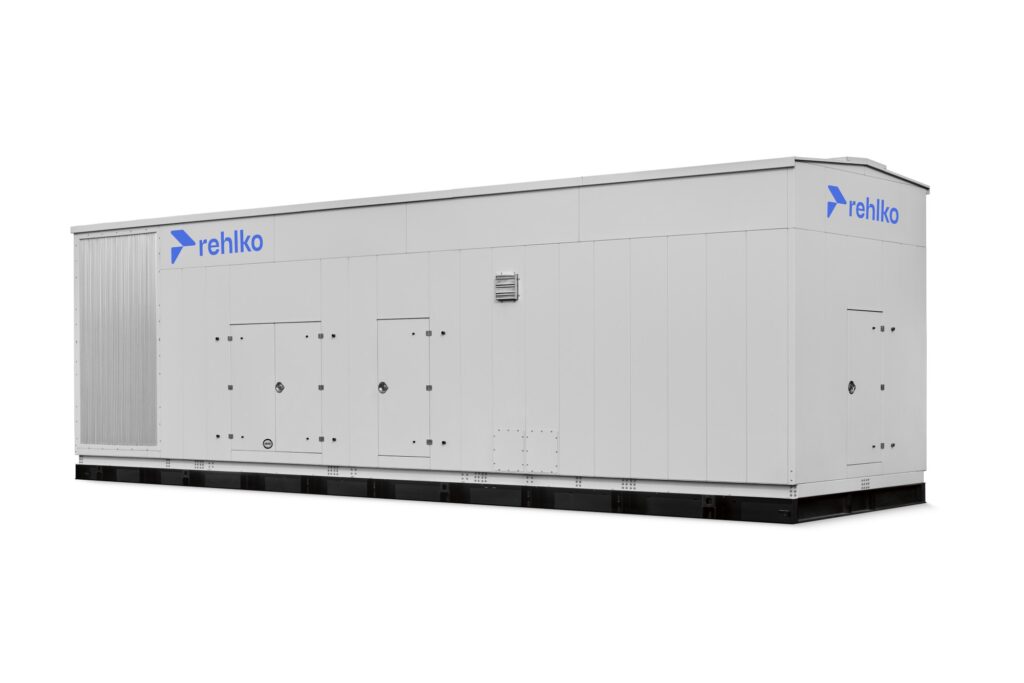

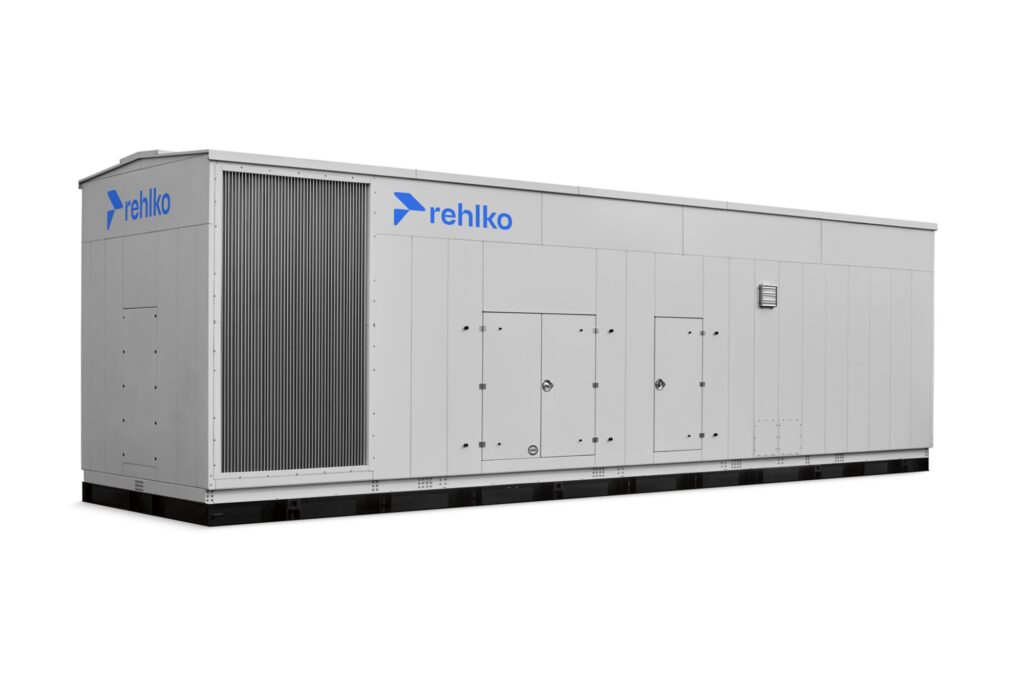

- Weather and Sound Enclosures
- Battery Heaters
- RSA III Annunciator
- Battery Chargers
- Subbase Fuel Tanks
This information is provided for reference only and should not be used for planning. Contact us for more detailed information.
