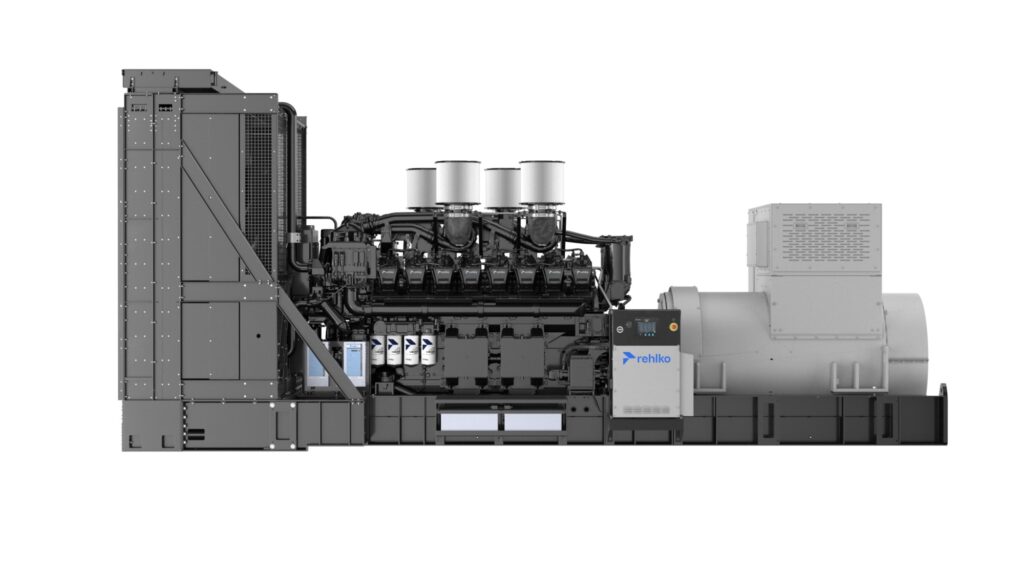

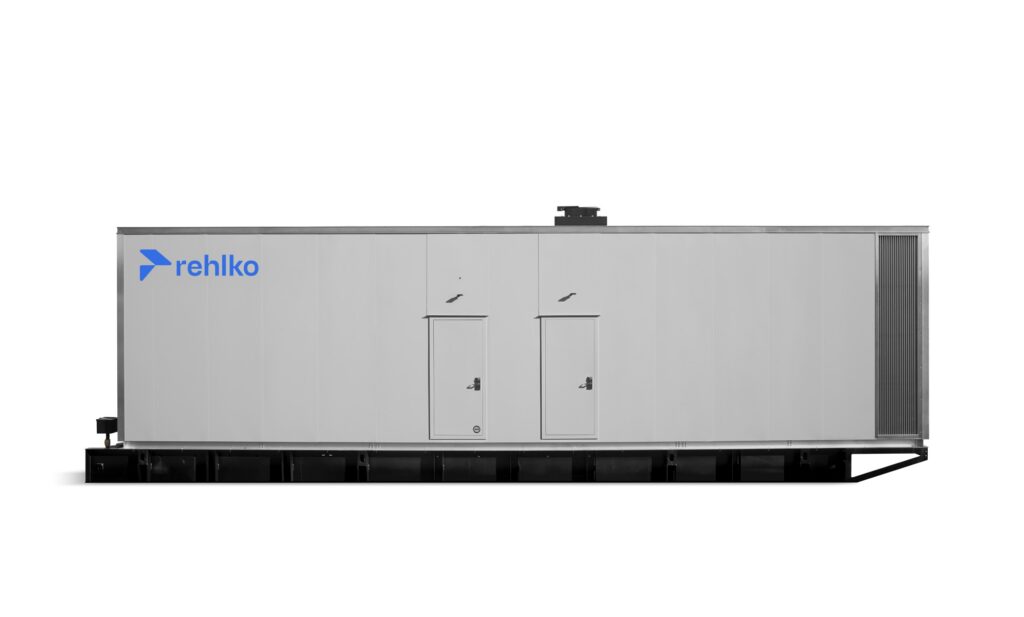

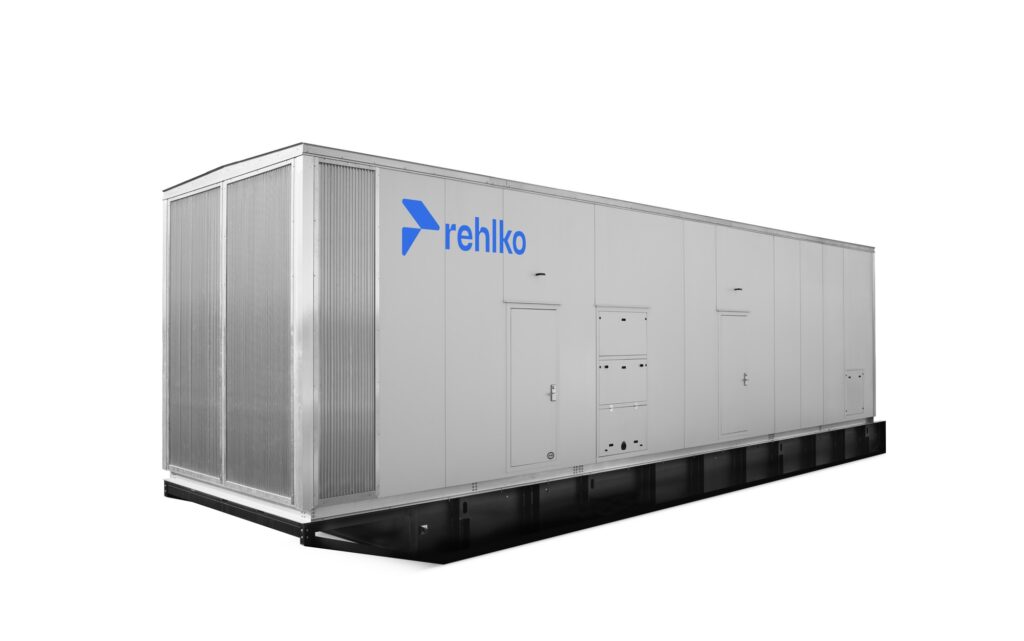

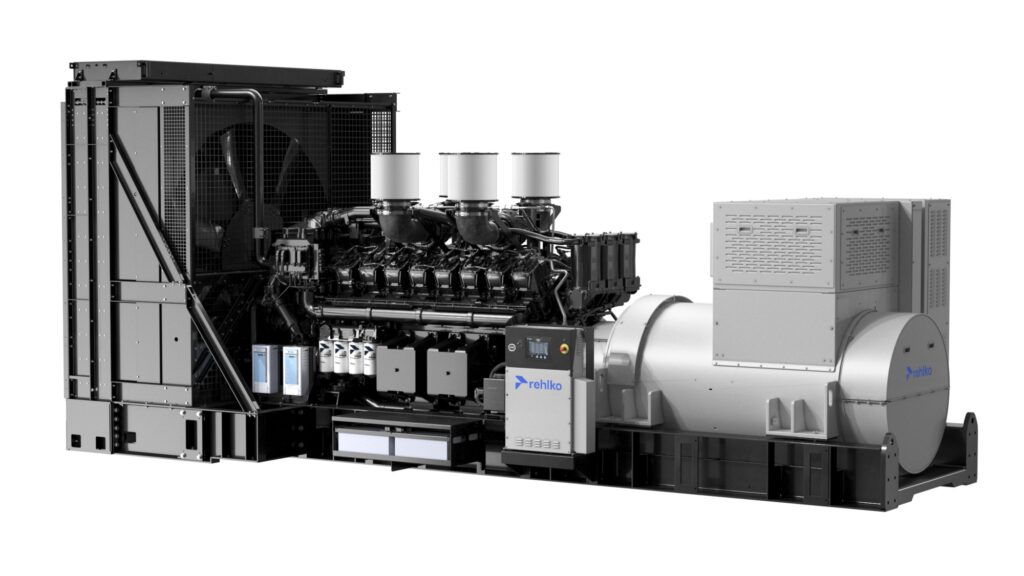

Diesel generator
KD3250
Coming Soon
kW Ratings — Prime Range: 2950 / Standby Range: 3250
Tier 2 EPA-Certified for Stationary Emergency Applications
Get a Quote- Specifications
- Features & Accessories
- Downloads
Specifications
- Engine ManufactureKohler
- kW Rating, Standby3250
- Hz60
- Speed1800
- ModelKD83V16
- kW Rating, Prime2950
- Fuel TypeDiesel
- Alternator Type4-Pole, Rotating-Field with Brushless, Permanent- Magnet Pilot Exciter
Features
- Kohler Co. provides one-source responsibility for the generating system and accessories.
- The generator set accepts rated load in one step.
- A standard three-year or 1000-hour limited warranty for standby applications.
- The pilot-excited, permanent magnet (PM) alternator provides superior short-circuit capability.
- Brushless alternator with brushless pilot exciter for excellent load response.
- Generator set meets NEMA MG1, BS5000, ISO, DIN EN, and IEC standards, NFPA 110
Accessories
- Exhaust silencers and flexible connectors
- Block Heater (Required for Ambient Temperatures Below 5°C (41°F))
- Line Circuit Breaker (loose)
- Five-year basic, five-year comprehensive, and ten-year extended limited warranties
- Heavy Duty Air Cleaner
- Automatic Oil Replenishment System
This information is provided for reference only and should not be used for planning. Contact us for more detailed information.
