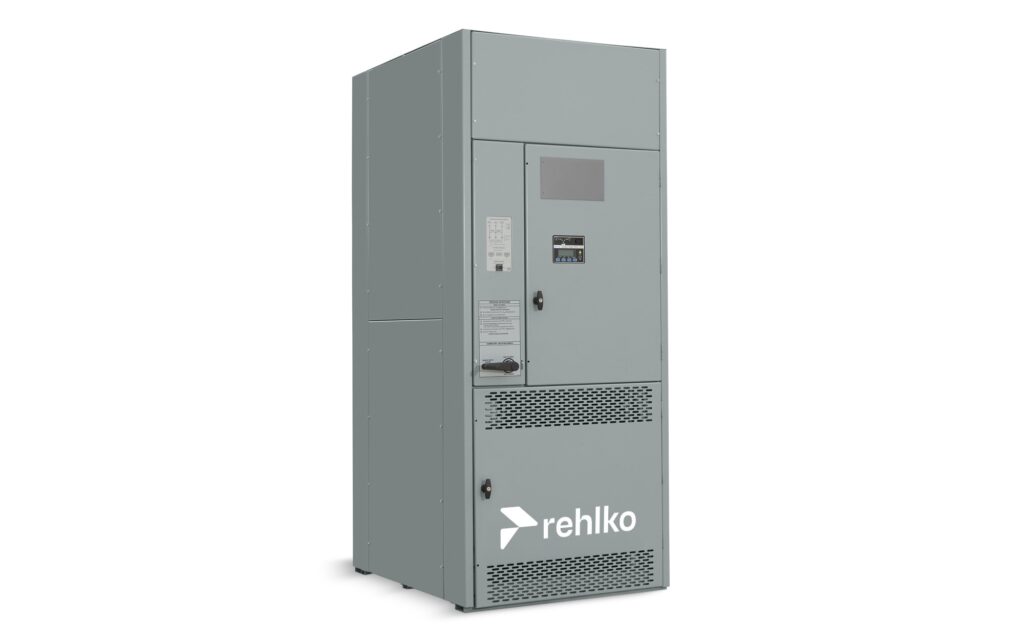

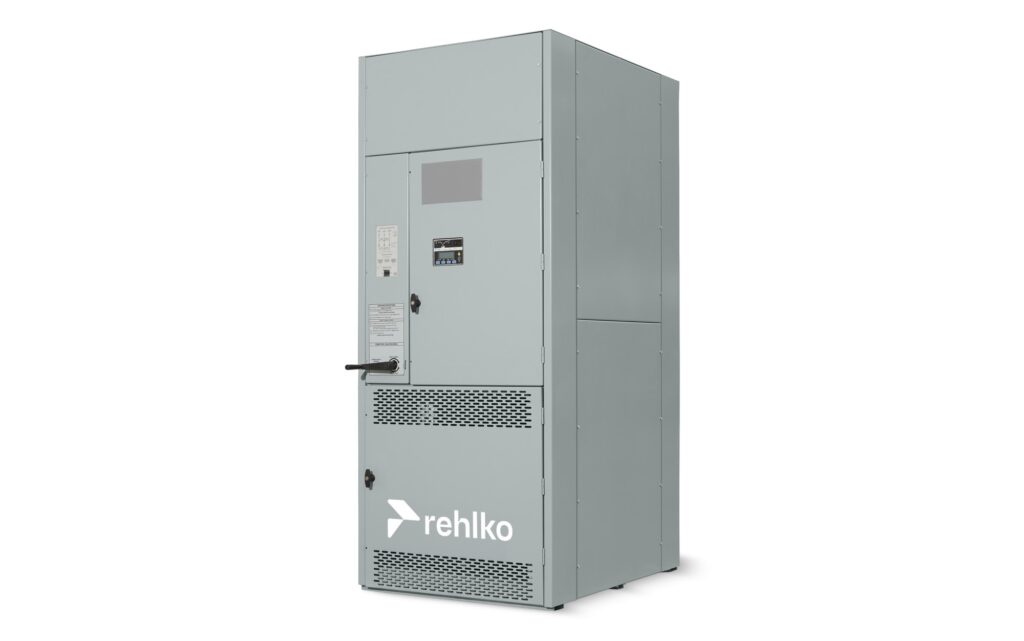

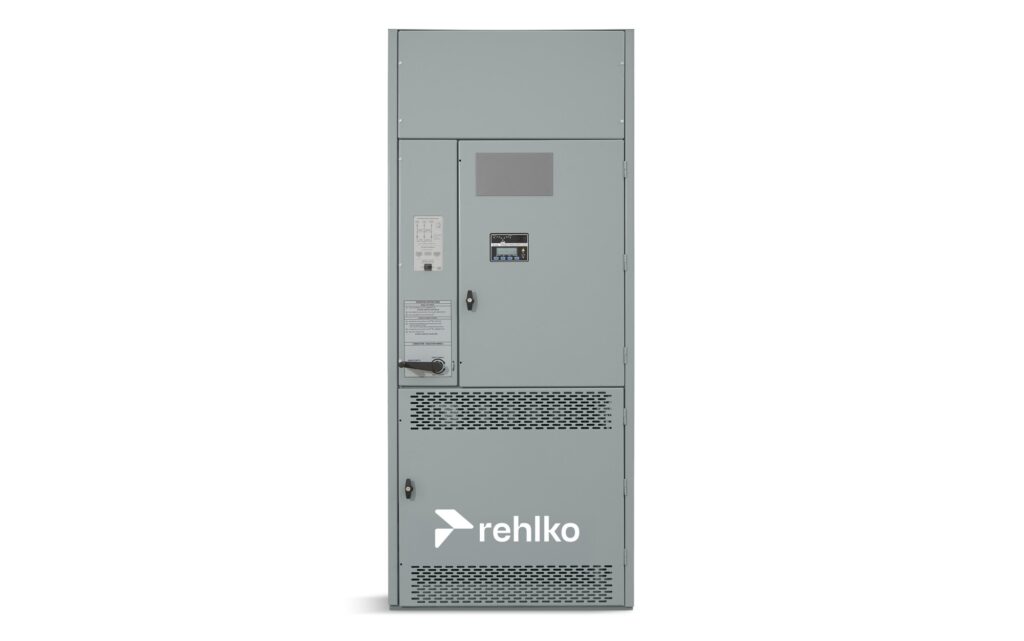

Bypass Isolation switch

KAP 150-600 AMP

Available in 150-600 amp Models

Bypass Isolation, NEMA 1, NEMA 3R Enclosures

Get a Quote

Specifications

  • ManufactureKohler
  • Switch TypeBypass Isolation
  • Amperage150-600
  • ModelKAP
  • Poles2, 3, 4
  • EnclosuresNEMA 1, NEMA 3R Enclosures

Features

  • Electrically Operated: bypass the primary mechanism at the touch of a button
  • Bypass/isolation switches for uninterrupted power to load during switch maintenance and testing
  • Available in 2, 3, or 4 pole configurations
  • Integral solid neutral provides line-to-neutral monitoring
  • One-line diagram with LEDs to indicate transfer switch and bypass status

Accessories

  • Anti-Condensation Heater
  • Ethernet Communications
  • Programmable Alarm Module
  • Current Sensing Kit
  • Digital Meter Kit

This information is provided for reference only and should not be used for planning. Contact us for more detailed information.

Request Drawings
